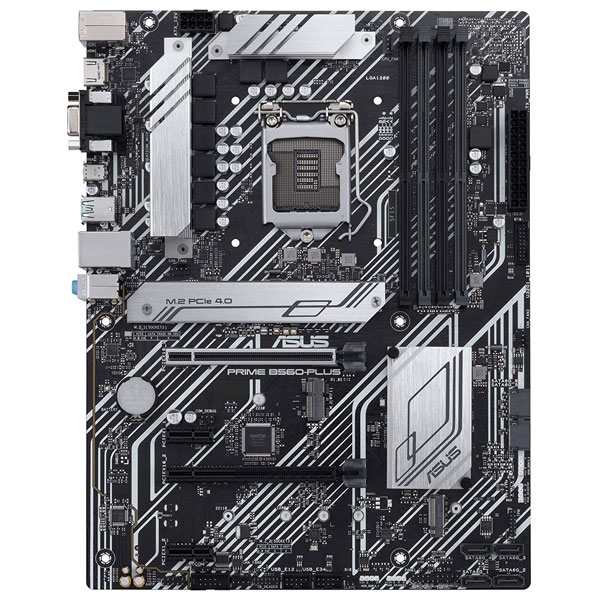

ASUS PRIME B560-PLUS Gaming Motherboard Price in Pakistan

Tune It Your Way:

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

UEFI BIOS:

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers:

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup:

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Cool to the Core:

Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink:

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.

VRM Heatsinks and Thermal Pads:

Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design:

Prime B560 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Build on a Solid Foundation:

Prime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

ASUS OptiMem:

Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Dual M.2 slots (up to 64 Gbps):

PRIME B560-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe® 4.0 Slot:

ASUS B560 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 2 Type-A:

Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Thunderbolt™ 4 header Support:

Prime B560-PLUS features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS TunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

Small Details Make a Big Difference:

Prime B560 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio:

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding:

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks:

Ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors:

Premium parts provide an immersive sound signature, with exceptional fidelity.

Aura Sync:

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Header:

Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate:

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

Specifications:

CPU:

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

B560

Memory:

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

ASUS OptiMem

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.

Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics:

*Graphics specifications may vary between CPU types.

** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Expansion Slots:

1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors:

1 x PCIe 4.0/3.0 x16 slot*

– Intel® 11th processors support PCIe 4.0 x16

– Intel®10th processors support PCIe 3.0 x16

Intel® B560 Chipset:

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

*Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Storage:

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® 11th Gen Processors:

– M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )

– Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset:

– M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)

– 6 x SATA 6Gb/s ports

When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

USB:

Rear USB:Total 7 ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x USB Type-C®)

4 x USB 2.0 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Realtek ALC897 7.1-Channel High Definition Audio CODEC*

Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192kHz playback

Audio Features:

– Audio Shielding

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Back Panel I/O Ports:

1 x DP port

1 x HDMI port

1 x D-Sub port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel® I219-V 1Gb Ethernet port

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 1 port (1 x USB Type-C®)

Intrernal I/O Connectors:

1 x TB Header (for add-on TB card)

Fan and cooling-related:

1 x 4-pin CPU Fan header

3 x 4-pin Chassis Fan headers

Power related:

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related:

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB:

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous:

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS jumper

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x SPI TPM header (14-1 pin)

1 x M.2 slot (key E)

1 x Thunderbolt 4 header

Special Features:

ASUS 5X PROTECTION III:

– ASUS DIGI+VRM

– ASUS LANGuard

– ASUS Overvoltage Protection

– ASUS SafeSlot Core+

– ASUS Stainless-Steel Back I/O

ASUS Q-Design:

– ASUS Q-DIMM

– ASUS Q-Slot

ASUS Thermal Solution:

– Flexible M.2 heatsink

– VRM heatsink design

ASUS EZ DIY:

– Box Headers

AURA SYNC:

– AURA RGB headers

– Addressable Gen 2 RGB headers

Software Features:

ASUS Exclusive Software:

Armoury Crate

– AURA Creator

-AURA Sync

AI Suite 3

-Performance And Power Saving Utility

Turbo EVO

Digi+ VRM

EPU

Fan Xpert 2+

– EZ update

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS:

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Accessories:

Cables:

2 x SATA 6Gb/s cables

Miscellaneous:

1 x M.2 Rubber Package

1 x IO Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media:

1 x Supporting DVD

Documentation:

1 x User’s manual

Operating System:

Windows 10 64bit

Form Factor:

ATX Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
