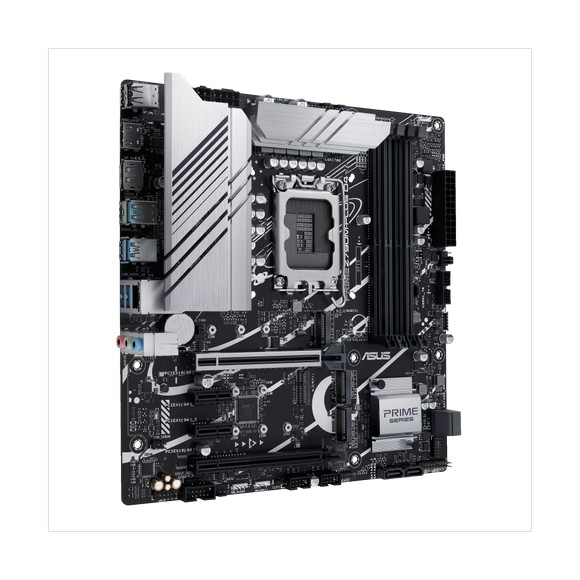

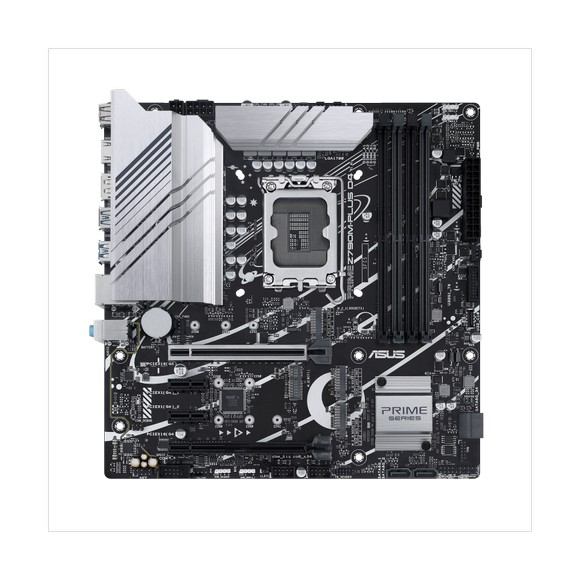

ASUS Prime Z790M-Plus D4 LGA 1700(Intel® 12th&13th Gen) microATX Motherboard
₨ 78,000
ASUS Prime Z790M-PLUS D4, an Intel Z790 LGA 1700 mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR4, Intel® 1 Gb LAN, HDMI®, DP, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Arua Sync
- Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
- Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) header support
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.
Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789
ASUS Prime Z790M-Plus D4 LGA 1700(Intel® 12th&13th Gen) microATX Motherboard Price in Pakistan
Brand | ASUS |
---|---|
Series | Prime |
Model | Z790M-PLUS D4 |
Part Number | 90MB1D20-M0AAY0 |
CPU Socket Type | LGA 1700 |
---|---|
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list. |
Chipset | Intel Z790 |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | DDR4 5333(OC) / 5133(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table on the ASUS support site |
---|---|
PCI Express 4.0 x16 | Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
PCI Express x1 | 2 x PCIe 4.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to ASUS support website for the list of supported peripherals. |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset |
SATA RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
---|
Max LAN Speed | 1 x Intel 1Gb Ethernet ASUS LANGuard |
---|---|
Wireless LAN | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks |
---|
Onboard USB | 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
---|---|
Other Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Storage related Miscellaneous |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6″ x 9.6″ |
Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin + 12V Power connector 1 x 4-pin + 12V Power connector |
Windows 11 | Supported |
---|
Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – ProCool Aura Sync – Aura RGB header – Addressable Gen 2 headers |
---|
Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide |
---|
