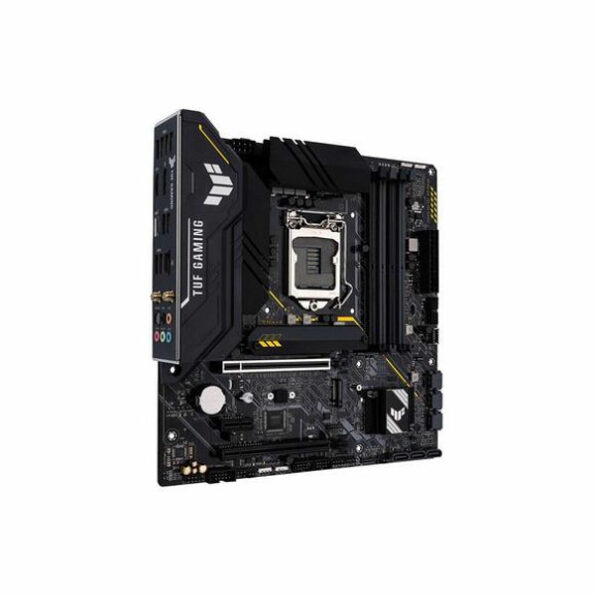

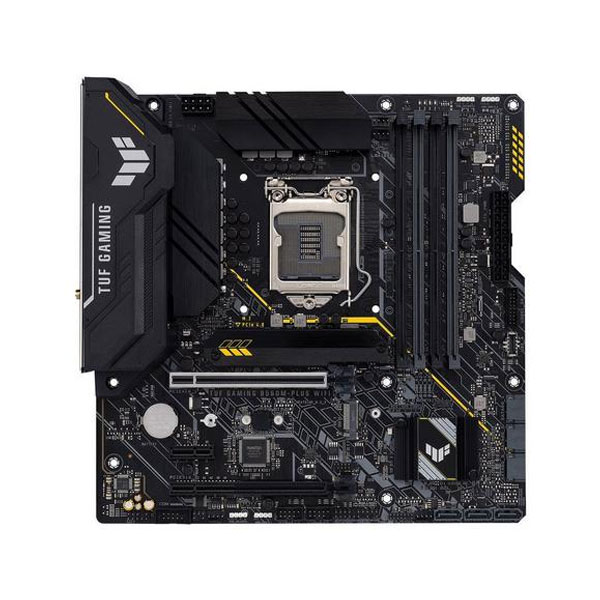

ASUS TUF B560M-PLUS WIFI Intel® B560 (LGA 1200) ATX motherboard, 8+1 DrMOS Power stages , PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0, DisplayPort 1.4, SATA 6Gbps, 2.5Gb Ethernet, Front USB Type-C®, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting
Original price was: ₨ 89,000.₨ 84,000Current price is: ₨ 84,000.
ASUS TUF GAMING B560-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
- Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
- Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB , ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Flexible M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, front USB 3.2 Gen 1 Type-C®, Thunderbolt 4 support
- Made for online gaming: Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard, and Turbo LAN technology
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
ASUS TUF B560M-PLUS WIFI Intel® B560 (LGA 1200) ATX motherboard, 8+1 DrMOS Power stages , PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0, DisplayPort 1.4, SATA 6Gbps, 2.5Gb Ethernet, Front USB Type-C®, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting Price in Pakistan
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B560M-PLUS WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133* * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Supports x4 mode. |
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset: * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| Intel Optane Ready | To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5Gb Ethernet |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.0 |
| Back I/O Ports | 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
| Features | Special Features: ASUS TUF PROTECTION – Digital power design with Dr. MOS – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – Pre-mounted I/O shield AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s) Software Features: BIOS: Manageability: Operating System: |
|---|

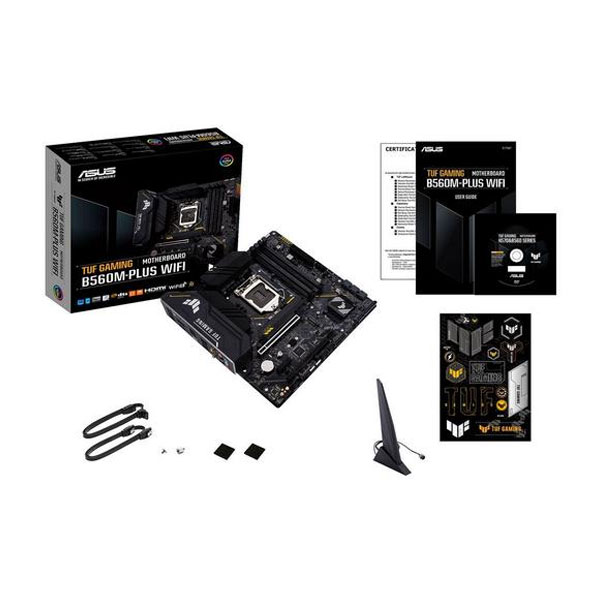

| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
|---|
