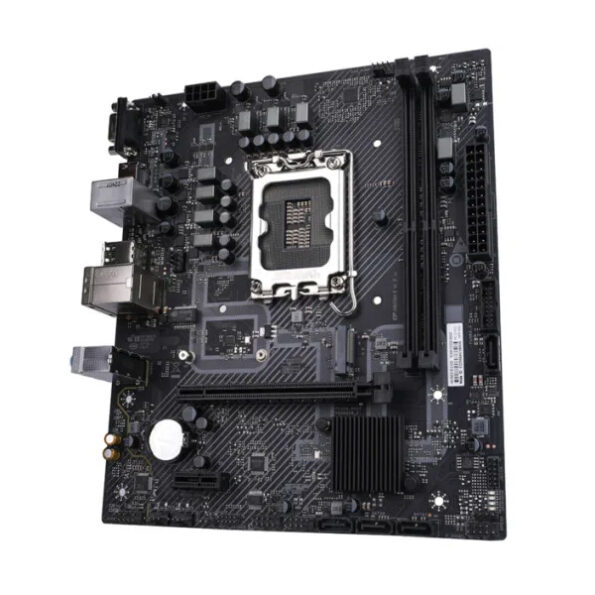

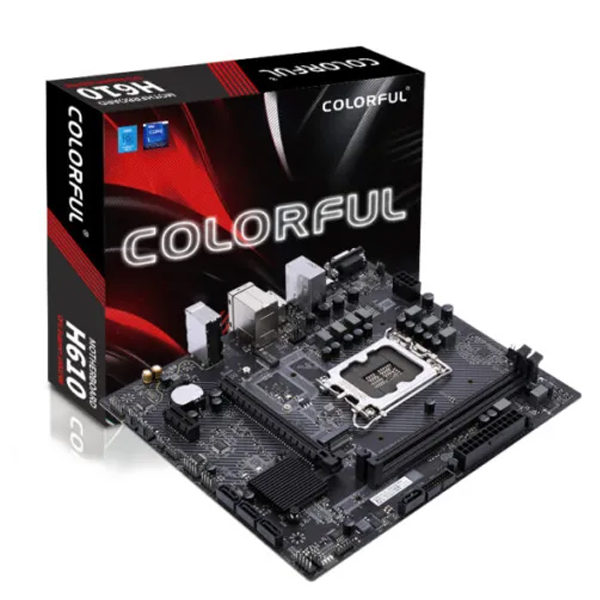

Colorful H610M-E M.2 V20 LGA 1700 Motherboard
₨ 31,500
- Support dual-channel DDR4-3200MHz memory
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card
- Realtek ALC897 sound card chip with up to 5.1 channels
- Rear: 2 USB 3.1 Gen 1 Type-A interfaces, 4 USB 2.0 interfaces
- Front: 2 USB 3.1 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789
Colorful H610M-E M.2 V20 LGA 1700 Motherboard Price in Pakistan
PROCESSOR | The 13th and 12th generation Intel supporting the LGA 1700 slot on the adapter motherboard ® Core TM, Pentium ® And Saiyang ® Processor (* Please visit the official website of Qicaihong www.colorful.cn for the latest processor support list) |
---|---|
MEMORY | Two DDR4 memory slots are provided, which can support up to 64 GB of memory (a single slot can support up to 32 GB of memory) – DDR4-3200/2933/2666/2400MHz memory – support dual-channel memory technology (* Please visit the official website of Rainbow for the latest memory compatibility list) |
SATA PORTS | A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported – M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |
BOARD I/O | Rear I/O interface: – 1 PS/2 interface – 4 USB 2.0 interfaces – 2 USB 3.1 Gen 1 Type-A interfaces – 1 HDMI 2.0 interface, Up to 4K 60Hz resolution – 1 VGA interface – 1 Gigabit network interface – 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: – 1 CPU fan pin – 2 system fan pins – 1 water cooling pump pin – 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces – 1 USB 3.1 Gen 1 pin can expand 2 USB 3.1 Gen 1 Type-A interfaces – 1 front audio pin – 1 front panel pin – 1 speaker pin – 1 Clear CMOS jumper – 1 COM port pin – 1 BIOS burner pin – 1 POST Card pin – 1 ME write protection jumper |
EXPANSION SLOTS | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
BIOS | 128M UEFI, supporting multiple languages |
POWER MANAGEMENT | Support S3, S4, network S5 wake-up, support timed startup, call startup |
HARDWARE MONITOR | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
LAN | RTL8111H Gigabit network card |
AUDIO | 5.1 sound card |
CONFIGURATION | M-ATX 225mm x 194mm |
