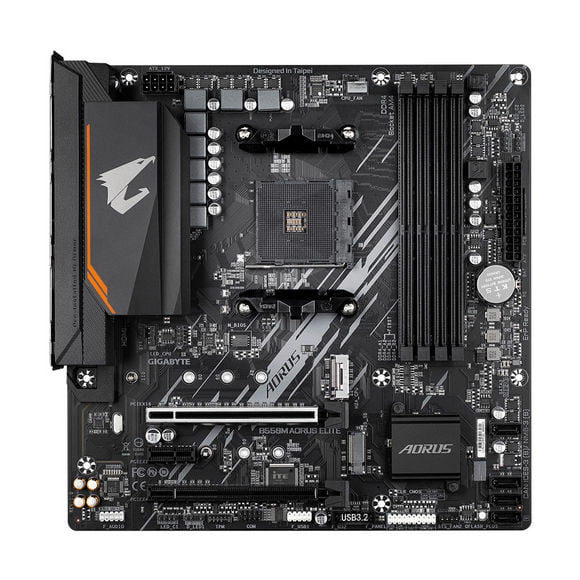

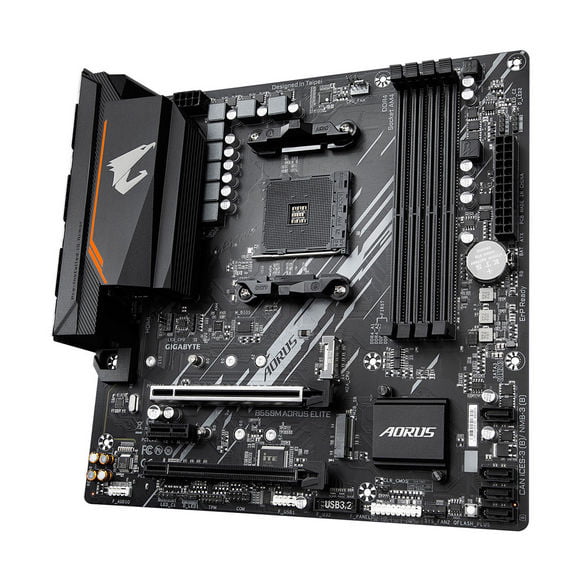

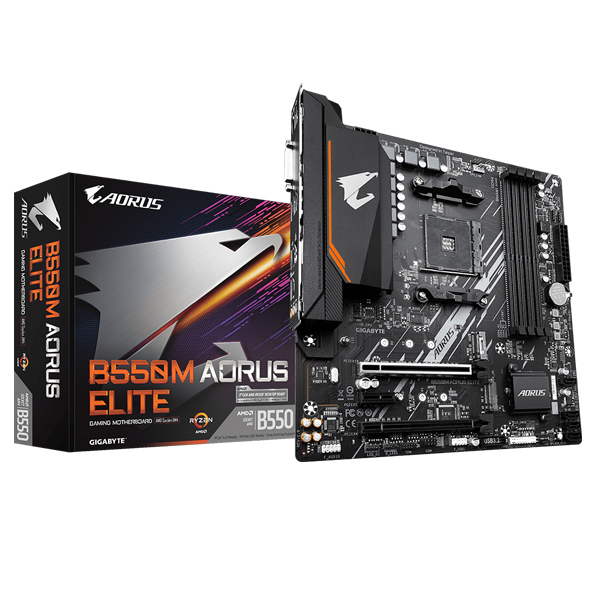

Gigabyte B550M AORUS ELITE Motherboard

Original price was: ₨ 42,000.Current price is: ₨ 40,000.

Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GIGABYTE Exclusive 8118 Gaming GbE LAN
Rear HDMI & DVI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

... people are viewing this right now

Category: Motherboard Tag: Shop Motherboard

Model
Brand	GIGABYTE
Model	B550M AORUS ELITE

Supported CPU
CPU Socket Type	AM4
CPU Type	Support AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series / Ryzen 3000 Series Processors

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Support DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
Maximum Memory Supported	Supports up to 128 GB (32 GB single DIMM capacity)
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode
PCI Express x1	1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs
SATA RAID	0/1/10

Onboard Audio
Audio Channels	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

Onboard LAN
Max LAN Speed	Realtek GbE LAN chip (10/100/1000 Mbit)

Rear Panel Ports

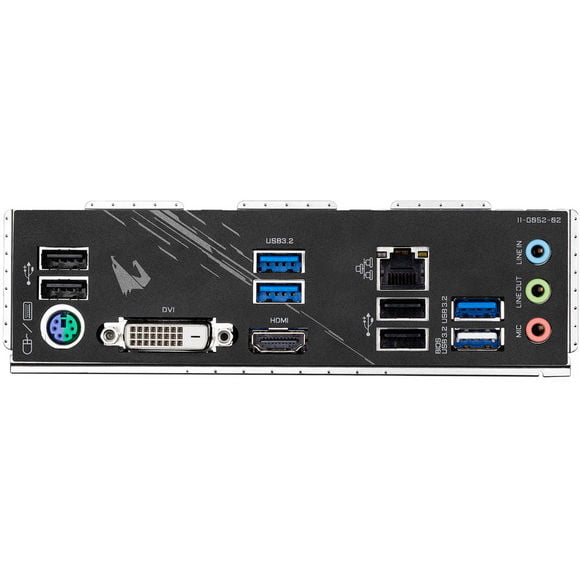

Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks 1 x Clear CMOS jumper 1 x Q-Flash Plus button

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Windows 11 Compatibility
Windows 11	Supported

Features
Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
