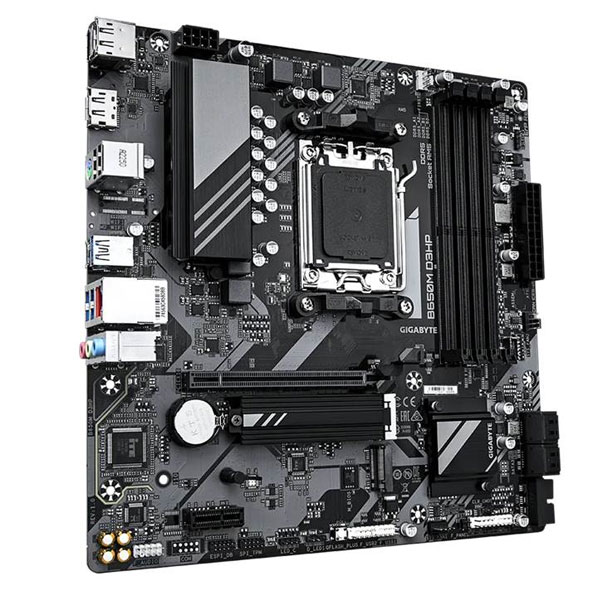

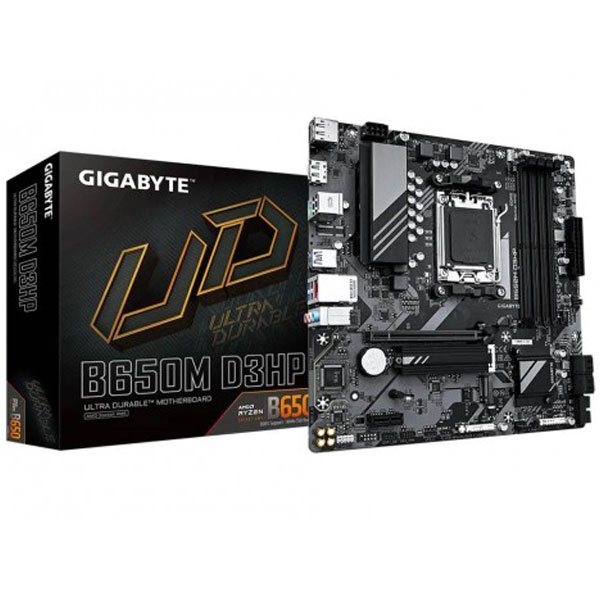

GigaByte B650M D3HP DDR5 AMD Ryzen 7000 Gaming Mothboard

GigaByte B650M D3HP DDR5 AMD Ryzen 7000 Gaming Mothboard Price in Pakistan

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)

Chipset

AMD B650

Memory

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support
– 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Integrated in the CPU:
– 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

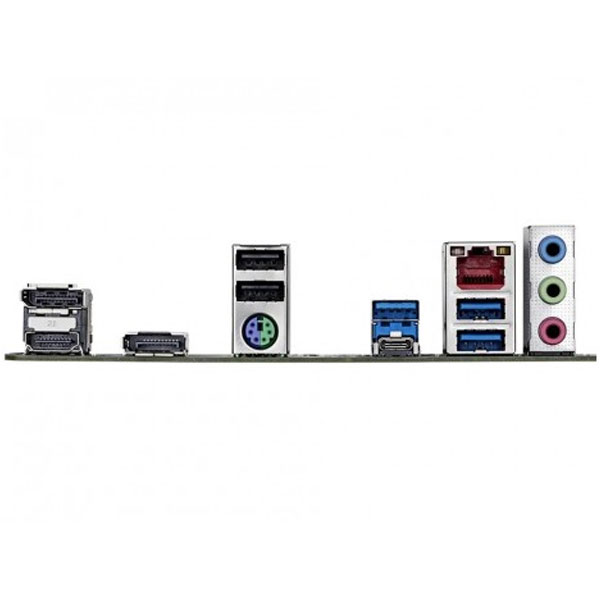

USB

CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
– 1 x USB 3.2 Gen 1 port on the back panel
– 1 x USB 2.0/1.1 port on the back panel
Chipset:
– 2 x USB 3.2 Gen 1 ports on the back panel
– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
