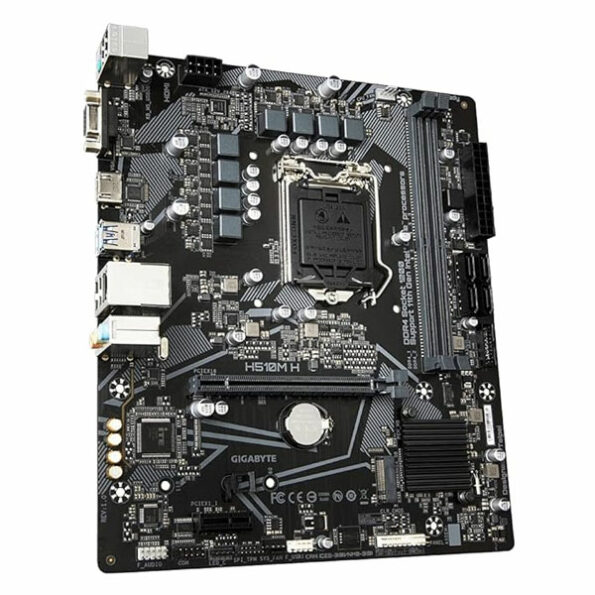

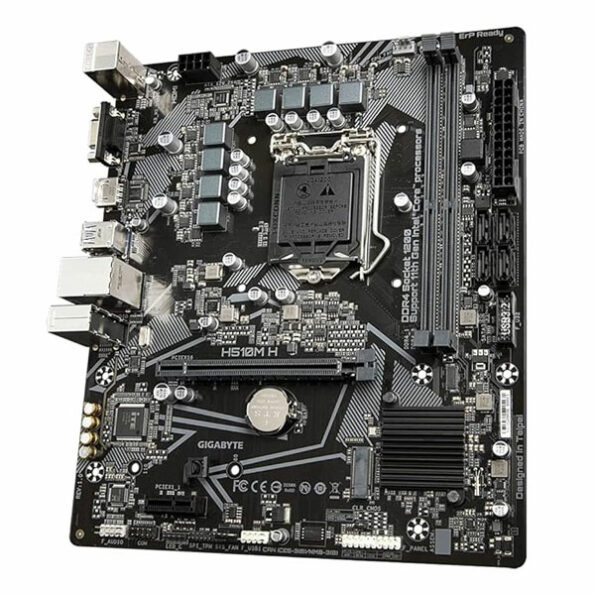

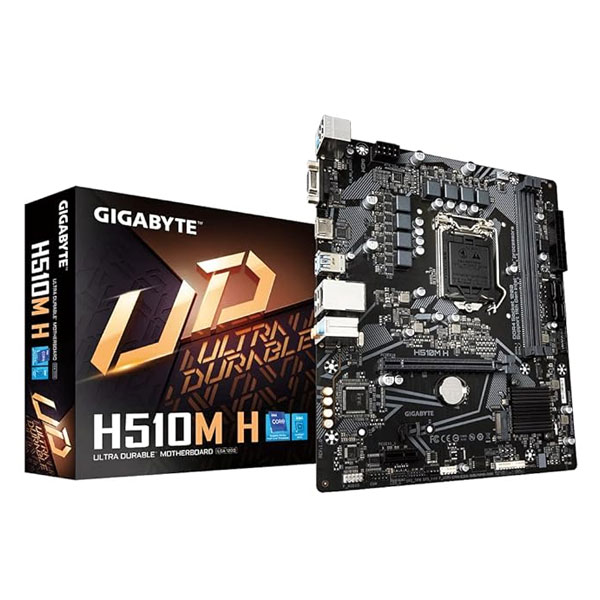

Gigabyte H510M H V2 1.0 Motherboard

Original price was: ₨ 38,000.Current price is: ₨ 32,000.

1. Supports 11th and 10th Gen Intel®  Core™ Series Processors
2. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
3. Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
4. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
5. High-Quality Audio Capacitors and Audio Noise
6. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan
    Headers with FAN STOP
7. GIGABYTE APP Center, Simple and Easy Use
8. Anti-Sulfur Resistors Design
  •  Delivery & Return

    Delivery

    We ship to all 50 states, Washington DC.
    All orders are shipped with a UPS tracking number.
    Always free shipping for orders over US $200.
    During sale periods and promotions the delivery time may be longer than normal.

    Return

    Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    Give us a shout if you have any other questions and/or concerns.
    Email: [email protected]
    Phone: +1 (23) 456 789

  ... people are viewing this right now

  Share
Category:

Gigabyte H510M H V2 1.0 Motherboard Price in Pakistan

1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors /
    Intel® Core™i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
   * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
3. L3 cache varies with CPU
Chipset:
1. Intel® H510 Express Chipset
Memory:
1. 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics:
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
   (Graphics specifications may vary depending on CPU support.)
Audio:
1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device
    advanced settings > Playback
    Device to change the default setting first. Please visit GIGABYTE’s website for details
    on configuring the audio software.
LAN:
1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots:
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
    install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
    * Supported by 11th Generation processors only.
2. 1 x PCI Express x1 slot (PCIEX1_1)
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface:
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
USB:
Chipset:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors:
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 4 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with
  the capability of delivering up to
  2A/12V @ 24W.
Back Panel Connectors:
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller:
1. iTE® I/O Controller Chip
H/W Monitoring:
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of
    each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software:
1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System:
1. Support for Windows 10 64-bit
Form Factor:
1. Micro ATX Form Factor; 24.4cm x 21.0cm.
