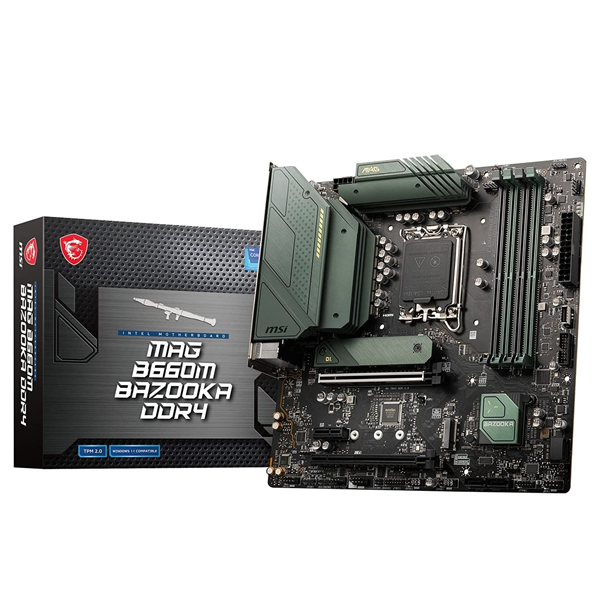

MSI Mag B660M Bazooka DDR4 – LGA 1700 (Intel 12th Gen) microATX Motherboard
Original price was: ₨ 44,000.₨ 42,000Current price is: ₨ 42,000.
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 4800+(OC) MHz
• Premium Thermal Solution
• Latest Network Solution
• Lightning M.2
• Audio Boost
MSI Mag B660M Bazooka DDR4 – LGA 1700 (Intel 12th Gen) microATX Motherboard Price in Pakistan
MAG B660M BAZOOKA DDR4
Conquer the Battlefield
The MAG B660M BAZOOKA DDR4 is a gaming-oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware.
• Supports Intel Core 12th Gen Processors (LGA 1700)
• 12 Duet Rail Power System
• 4 x DDR4 DIMMs, Memory Boost (4800MHz+ OC)
• 1 x PCI-e 4.0 x16 (Steel Armor) Graphics Card Slot
• Lightning Gen4 M.2 slots (M2_1 with Shield Frozr)
• 7.1 HD Audio with Audio Boost
• 2.5G LAN Controller
Supports Intel Core 12th Gen Processors
The MAG B660M BAZOOKA DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Form Factor: Micro-ATX
• Socket Type: LGA 1700
• Chipset: Intel B660
12+1+1 Duet Rail Power System
With its 8+4 pin power connectors and exclusive Core Boost Technology, the MAG B660M BAZOOKA DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings:
• Digital PWM IC
• 1-Phase AUX Power
• 1-Phase GT Power
• 12 Duet Rail CPU Power System
Integrated Cooling Features
• VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
• PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
• SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
• System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
4 x DDR4 Dual Channel (4800+ MHz Overclocked*)
• Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
• XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 4800+ MHz depending on memory module capability.
Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. Steel Armor also shields the point of contact from electromagnetic interference:
• 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)
• 1 x PCI-e 3.0 x16 slot (PCE-e 3.0 x4 from chipset)
Gen4 M.2 Connectors
The MAG B660M BAZOOKA DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
• 2 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
• M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
2.5G LAN Controller
• 2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience.
• USB 3.2 Gen 2: Connect to devices and transfer files at high bandwidth rates: 10Gb/s.
• HD Audio: 7.1-Channel High Definition Audio
Only logged in customers who have purchased this product may leave a review.
